PLASMA LGK SERIES


FUNCTIONS

·         Plasma cutting & Air ARC Gouging.


INDUSTRIES

·         Heavy Industrial Fabrication

·         Oil & Gas Industries Fabrication

·         Industrial Maintenance

·         Automobile   Industries

·         Railways heavy Fabrication

·         PEB Industries

·         Stainless Steel Fabrication

·         Process Industries

·         Cement Industries

·         Ship Building yard

·         Power generation industries





PARAMETERS



MA

CHINE MODELS

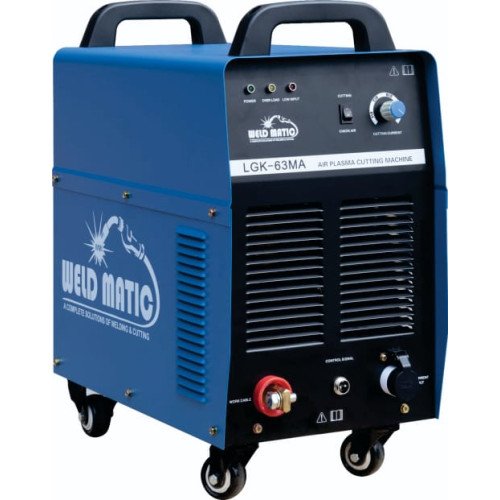

LGK-63MA

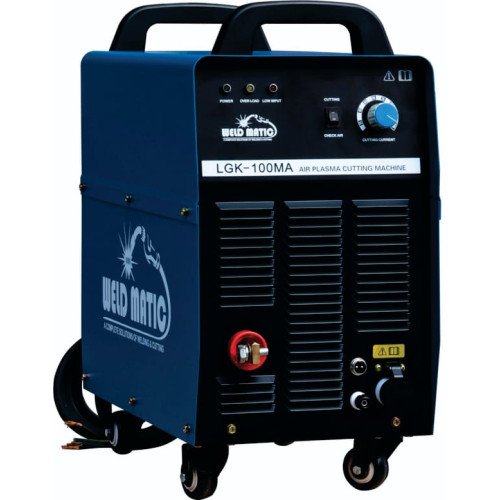

LGK-100MA

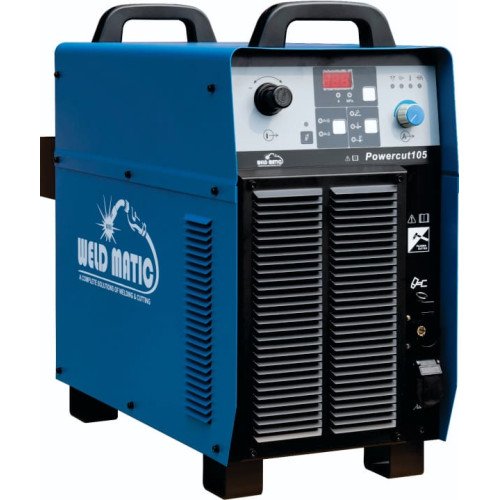

POWERCUT-105

Input Voltage (V)

3Ph. 415± 10%

3Ph. 415± 10%

3Ph. 415± 10%

Frequency (Hz)

50Hz

50Hz

50Hz

Rated Input Current (A)

13 A

22 A

32.5 A

Power (KVA)

9.3 KVA

15.8 KVA

23.4 KVA

No Load Voltage (V)

265 V DC

300 V DC

348 V DC

Output Current Range (A)

30-63 A DC

30-100 A DC

30-105 A DC

Rated Output Voltage (V)

100 V DC

115 V DC

160 V DC

Duty Cycle @ 40dc (%)

60%

60%

100%

No Load Loss (W)

60 W

80 W

60 W

Efciency (%)

93%

89%

94.3%

Power Factor (PF)

0.8

0.85

0.76

Arcing Way

High Frequency

Pilot ARC

Non High Frequency Striking

Insulation Grade

FClass

FClass

FClass

Protection Class

IP21S

IP21S

IP21S

Quality Cutting Thickness

15 mm

25 mm

20 mm

Maximum Cutting Thickness

25 mm

40 mm

40 mm

Air Pressure

0.3-0.5 MPa

0.3-0.6 MPa

0.3-0.5 MPa

Nett. Weight Power Source (Kg.)

25 Kg.

30 Kg.

46 Kg.

Dimensions (mm)

530x280x485

530x280x485

675x315x605

FEATURES

·         Compact Size, Lightweight & Power Saving.

·         Strong Current Output, Superior Cutting and Gouging Performance.

·         Step less Adjustment of Current & Voltage in a wide range.

·         Digital Display for Accurate Parameter Preset.

·         Suitable for Ferrous & Non Ferrous Metals etc.

·         Adopting Inverter Soft Switch Technology Cutting Current is Stable.

·         With Fast Cutting Speed & High Efficiency the Machine speed is 2-5 times

·         Faster than the Traditional Machine.

·         Good ARC Rigidity & Cutting Groove.

·         Suitable for Automation, Robot & CNC Cutting.
